Length: 25.6m / 85ft
Beam: 8.3m / 27ft
Draft: 1.4m / 4.6ft
Area: 325m2 / 3500ft2
Displacement: 55000kg
Cruising Speed¹: 30-37knts
Sprint Speed¹: 37-45knts ²
Range 30 knots³: 1200nm +
Range 8 knots³: 3500nm
¹ Dependant on engine size
² 50knt plus version available
³ With long range tank
Engines: 2 @ 1800-2200hp
Fuel tanks:
9000 litres (day tank)
+ 9000 litres (long range tank)
Fresh water tanks: 2500 litres
Accommodation: 5 guest cabins + 1 crew cabin

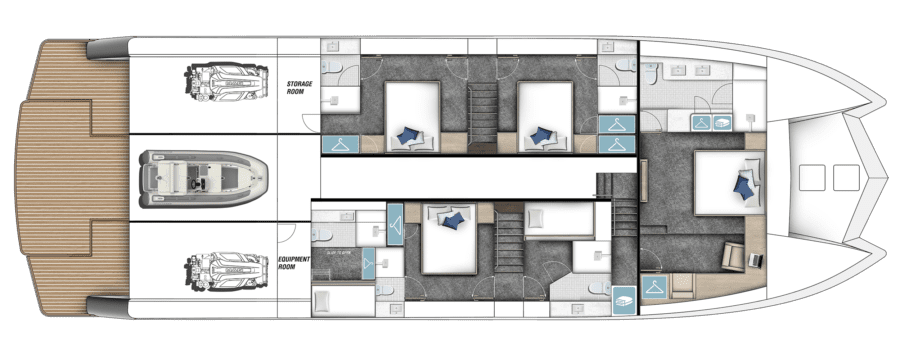

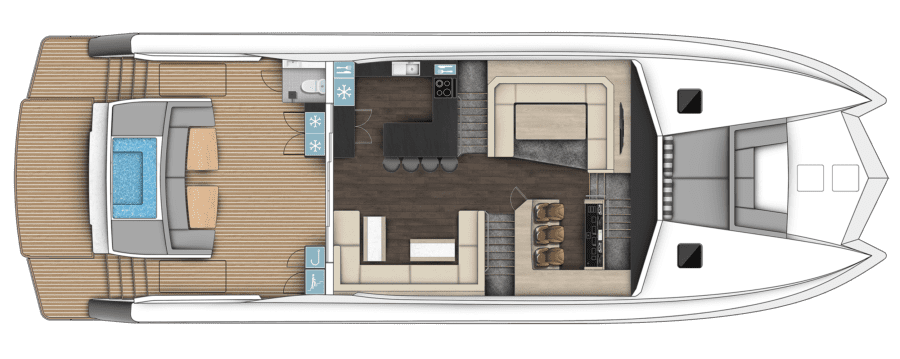

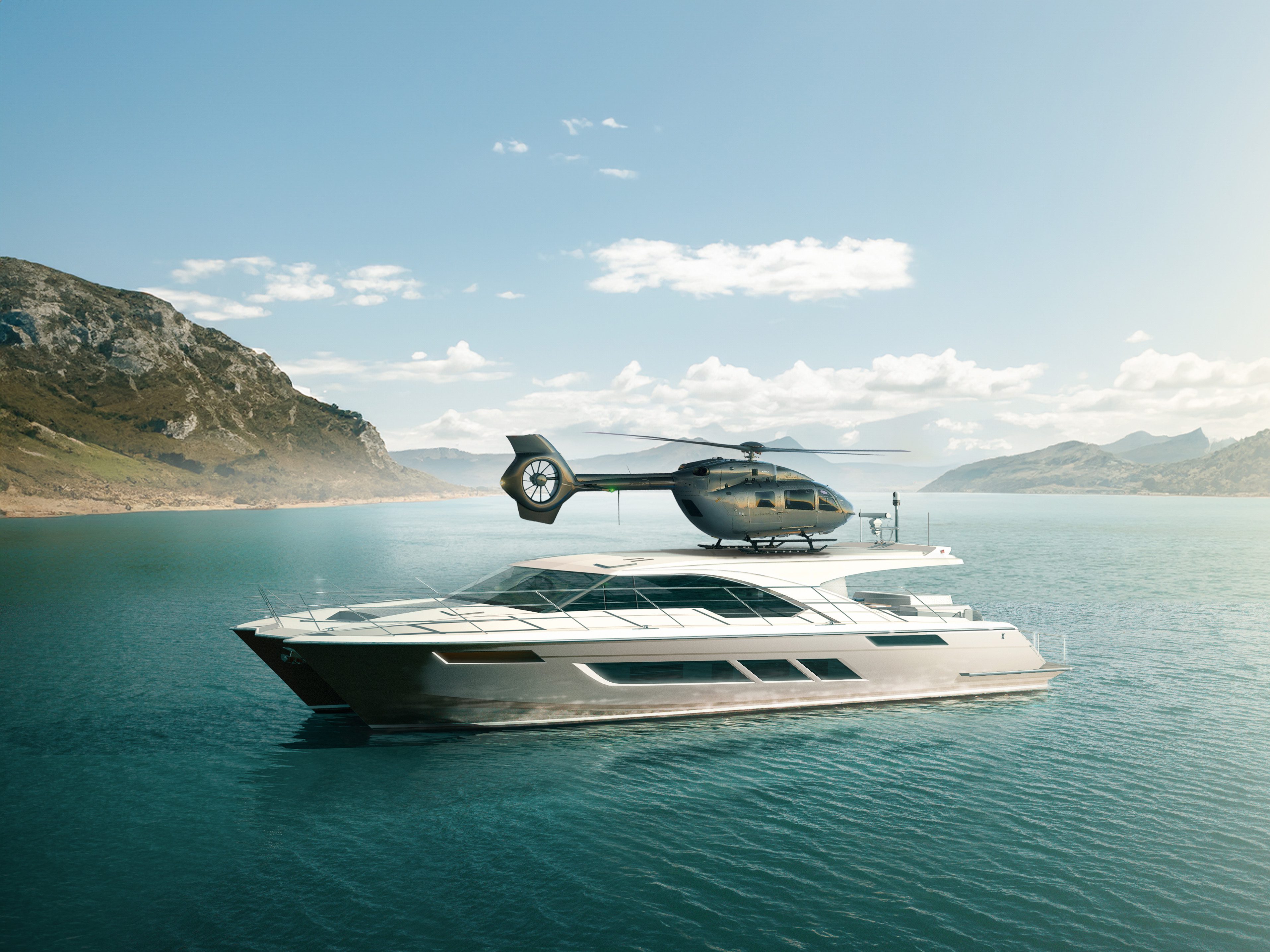

XF85 General Arrangement
XF85 Layout

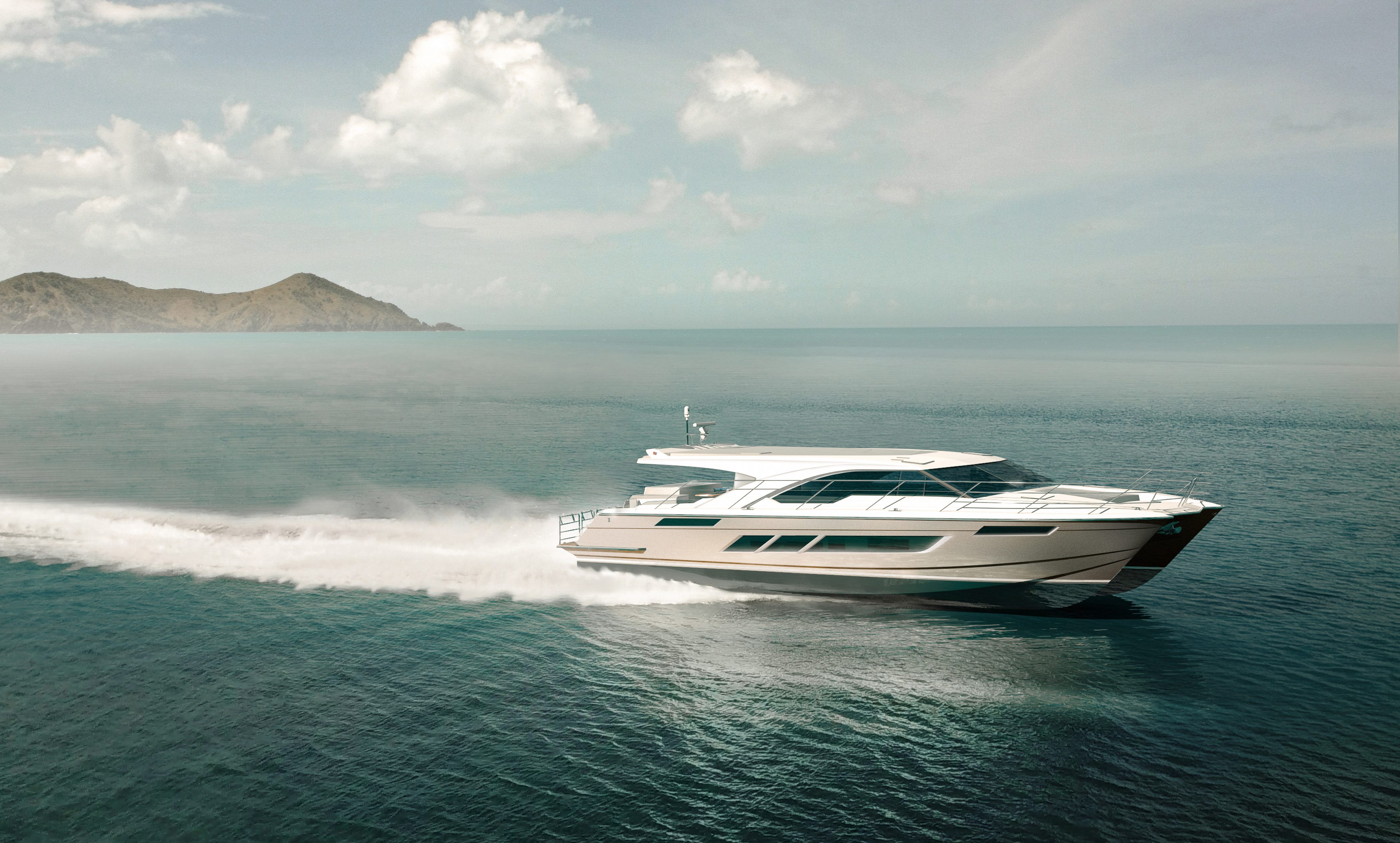

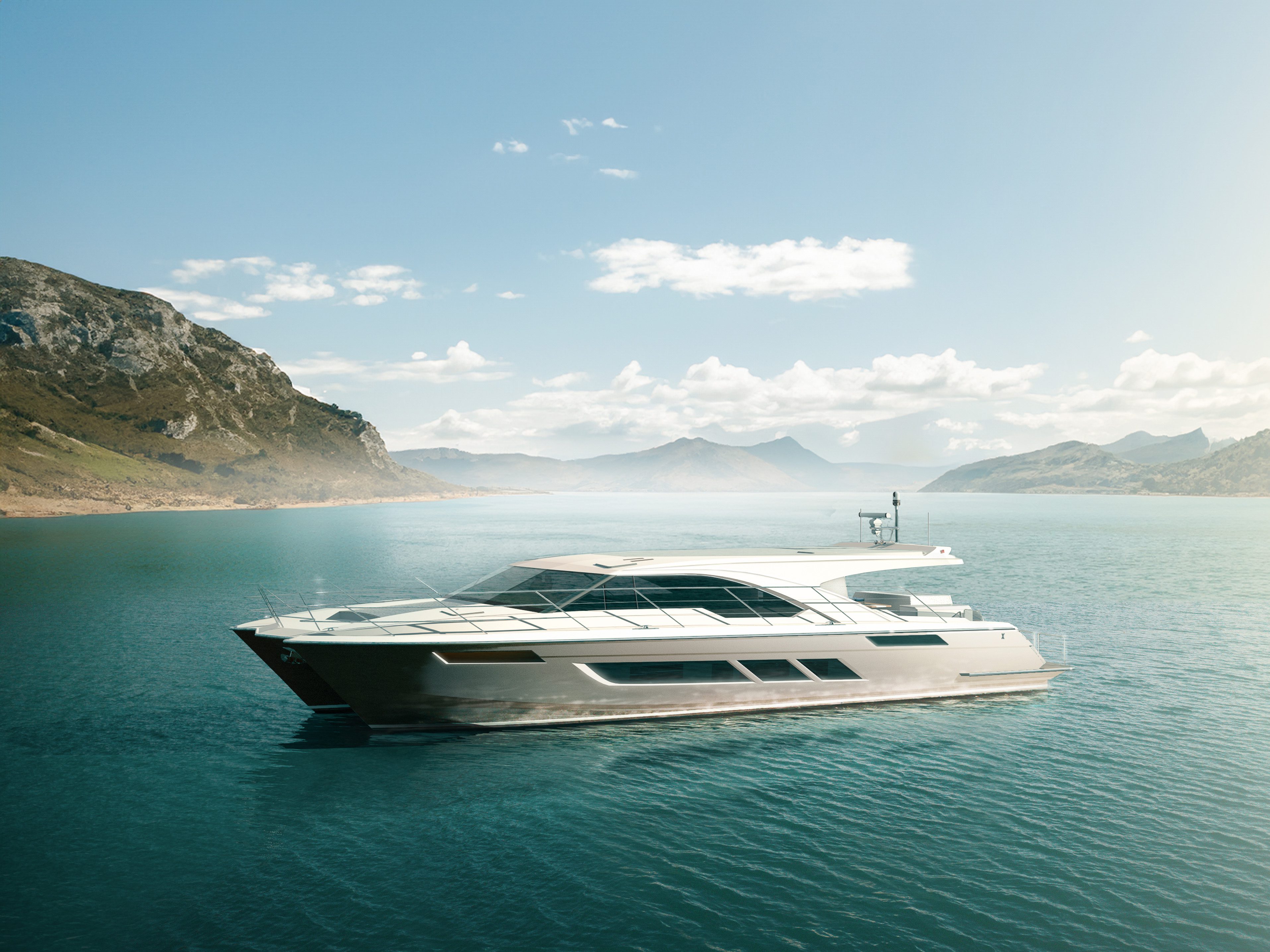

XF85 Gallery
Range Map
Click a location to view the estimated range a Voodoo Yacht is capable of.
XF 50
Length (m/ft): 15m / 50ft
Area (m2/ft2): 128m2 / 1378 ft2
Sprint Speed: 38-45knts
Cruising Speed: 30-35knts
Range @ 30knts: 500-1000nm
Range @ 8knts: 2000nm
XF 60
Length (m/ft): 18m / 59ft
Area (m2/ft2): 179m2 / 1926ft2 Sprint Speed: 37-45knts
Cruising Speed: 30-37knts
Range @ 30knts: 600-1200nm
Range @ 8knts: 3000nm
XF 66
Length (m/ft): 20m / 66ft
Area (m2/ft2): 236m2 / 2540ft2
Sprint Speed: 37-45knts
Cruising Speed: 30-37knts
Range @ 30knts: 600-1200nm
Range @ 8knts: 3000nm
XF 75
Length (m/ft): 22.8m / 75ft
Area (m2/ft2): 275m2 / 2960ft2
Sprint Speed: 37-45knts
Cruising Speed: 30-37knts
Range @ 30knts: 600-1200nm
Range @ 8knts: 3000nm
XF 85
Length (m/ft): 25.6m / 84ft
Area (m2/ft2): 325m2 / 3500ft2
Sprint Speed: 37-45knts
Cruising Speed: 30-37knts
Range @ 30knts: 600-1200nm
Range @ 8knts: 3000nm +
DSF 86
Length (m/ft): 26.2m / 86ft
Area (m2/ft2): 450m2 / 4840ft2
Sprint Speed: 20-23knts
Cruising Speed: 12-18knts
Range @ 18knts: 1150nm +
Range @ 8knts: 4000nm +
XF 95
Length (m/ft): 28.5m / 95ft
Area (m2/ft2): 500m2 / 5400ft2
Sprint Speed: 40knts
Cruising Speed: 30-35knts
Range @ 30knts: 1200nm
Range @ 8knts: 3500nm
Go further, faster
Immensely fast and utterly luxurious Voodoo yachts are the perfect high-speed vessels for the modern explorer. Utilising a unique foil-assisted catamaran hull the Voodoo is capable of cruising at speeds in excess of 40knts with genuine offshore passage making range.
